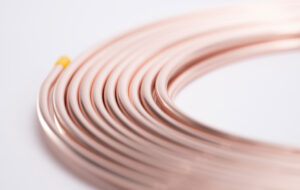

Air Conditioner/refrigeration Capillary copper tube
Small-diameter copper tube, Micro copper tube
Material: Customizable. C12200, C12000, C10200, C11000, C10100, etc.
Size: Customizable
Delivery time: Usually 3-7 days, or upon negotiation
Competitive price and quality from our own factory
Terms of price: EXW, FOB, CFR, CIF
Payment Term: TT, L/C, etc
Certificates: ASTM, ISO 9001, CE, EN
C10100 Purple Copper Tubing is a high purity oxidized copper often referred to as Electrolytically Tough Copper (ETP Copper) or Pure Copper. This copper alloy is known for its excellent electrical conductivity and is one of the most commonly used copper materials for electrical applications.C10100 is typically 99.99% pure, which allows it to excel in electrical and thermal conductivity while maintaining the good workability and ductility of copper.
GNEE can cut material to your specifications using bar saws, shears, precision plate saws and water jet cutters.
Industry-leading copper production technology
|
Item
|
Air Condition Or Refrigerator copper tube / copper pipe ,brass pipe ,brass tube ,bronze pipe,bronze tube,
|
||
|
Type
|
straight copper pipe,pancake coil copper pipe,capillary copper pipe
|
||
|
Standard
|
GB/T1527-2006,JIS H3300-2006,ASTM B75M,ASTMB42,ASTMB111,ASTMB395,
ASTM B359,ASTM B188,ASTM B698,ASTM B640,etc |
||
|
Material
|
T1,T2,C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920,
TP1,TP2,C10930,C11000,C11300,C11400,C11500,C11600,C12000,C12200,C12300, TU1,TU2,C12500,C14200,C14420,C14500,C14510,C14520,C14530,C17200,C19200,
C21000,C23000,C26000,C27000,C27400,C28000,C33000,C33200,C37000,C44300,C44400,
C44500,C60800,C63020,C65500,C68700,C70400,C70600,C70620,C71000,C71500,C71520,C71640,C72200,etc
|
||
|
Shape
|
Round,Square,Rectangular,Oval,half-round
|
||
|
Round
|
OD:2-914mm (1/16″-36″)
WT:0.2-120mm(SCH5S-SCH160S) |
||
|
Square
|
Size:2*2-1016*1016mm(1/16″-40″)
WT0.2-120mm |
||
|
Rectangular
|
Size:2*4-1016*1219mm(1/16″-48″)
WT:0.2-120mm |
||
|
Length
|
1m,2m,3m,6m,or as required
|
||
|
Hardness
|
1/16 hard,1/8 hard,3/8 hard,1/4 hard,1/2hard,full hard,soft,etc
|
||
|
Surface
|
mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required
|
||
|
Price Term
|
Ex-Work,FOB,CNF,CFR,CIF,FCA,DDP,DDU, etc
|
||
|
Payment Term
|
TT,D/P,L/C,Western Union,D/A,D/P,Paypal,etc
|
||
| Melting Point – Liquidus°F | 1981 |
|---|---|
| Melting Point – Solidus°F | 1981 |
| Densitylb/cu in. at 68°F | 0.323 |
| Specific Gravity | 8.94 |
| Electrical Conductivity% IACS at 68°F | 101 (1) |
| Thermal ConductivityBtu/ sq ft/ ft hr/ °F at 68°F | 226 |
| Coefficient of Thermal Expansion 68-21210 to -6 power per °F (68 – 212°F) | 9.4 |
| Coefficient of Thermal Expansion 68-39210 to -6 power per °F (68 – 392°F) | 9.6 |
| Coefficient of Thermal Expansion 68-57210 to -6 power per °F (68 – 572°F) | 9.8 |
| Specific Heat CapacityBtu/ lb /°F at 68°F | 0.092 |
| Modulus of Elasticity in Tensionksi | 17000 |
| Modulus of Rigidityksi | 6400 |
| Technique | Suitability |
|---|---|
| Soldering | Excellent |
| Brazing | Excellent |
| Oxyacetylene Welding | Fair |
| Gas Shielded Arc Welding | Good |
| Coated Metal Arc Welding | Not Recommended |
| Spot Weld | Not Recommended |
| Seam Weld | Not Recommended |
| Butt Weld | Good |
| Capacity for Being Cold Worked | Excellent |
| Capacity for Being Hot Formed | Excellent |
| Forgeability Rating | 65 |
| Machinability Rating | 20 |
Application areas for C10100 pure copper:
Electrical industry: due to its high conductivity, C10100 is a commonly used material for manufacturing electrodes and electrical connectors.
Electronics industry: It is used in the manufacture of various electronic components, such as conductive paths for printed circuit boards.
Heat exchange and cooling systems: Its high thermal conductivity makes C10100 suitable for use in heat sinks, heat exchangers and cooling systems.
Decorative and architectural: The natural luster and good corrosion resistance of pure copper make it a popular choice for decorative pieces and building materials.
C10100 copper is characterized by
High ductility
High electrical and thermal conductivity
High impact strength
Good creep resistance
Easy to weld
Low relative volatility in high vacuum
C10100 seamless copper tube production process
We are copper metal supplier. Our company specializes in supplying copper metal to customers worldwide.
We pride ourselves on our commitment to quality, reliability and customer satisfaction. Our experienced team is passionate about the industry and dedicated to providing exceptional service.
